# The Best PC Cases for AI/ML Workstation Builds in 2026 *Kaito Tanaka, Hardware Editor — July 25, 2026*

A workstation case does not increase model throughput by itself. It determines whether the hardware producing that throughput can operate for hours without recirculating hot air, crushing a power cable against the side panel, or turning routine maintenance into a full rebuild.

That distinction matters with an RTX 5090-class GPU rated at 575W. Partner cards may measure roughly 350–420mm long, while the Founders Edition is approximately 304mm [[1]](pcbuildhelper.com↗ [[2]](cameraegg.org↗ [[3]](wellfizz.com↗ Length is only the first compatibility check. Builders must also account for card width, thickness, motherboard slot placement, intake access and the bend imposed on a modern 12V-2x6 power lead.

My overall recommendation is the Montech Air 903 Max for a cost-controlled single-GPU workstation, the Lian Li LANCOOL 216 for the strongest balanced mid-range build, and the Corsair Obsidian 1000D only for genuinely extreme liquid-cooled or dual-system projects. The Phanteks XT Pro Ultra is an excellent budget alternative with unusually generous clearance, while the Corsair FRAME 4000D RS is the modern modular choice.

All prices below are US prices observed in July 2026 from the cited manufacturer or retailer evidence. Retailer prices move, and color or RGB variants can cost more. Where the gathered evidence does not establish an exact exterior dimension or numeric GPU limit, I say so rather than manufacture a specification.

The workstation-specific criteria

A productive AI/ML tower needs more than a perforated front panel. I prioritize these characteristics:

• Unrestricted GPU intake: A mesh front and a clear lower chamber help an open-air GPU obtain fresh air instead of repeatedly consuming its own exhaust. Included large fans reduce the cost and effort needed to establish that airflow.
• Cable and side-panel clearance: Maximum GPU length does not reveal how much space remains beside the power connector. A case may accept a card longitudinally but still force the 12V-2x6 cable into an abrupt turn.
• Sustained exhaust capacity: A case must move heat out as effectively as it brings air in. Top and rear exhaust positions are especially useful when a high-TDP GPU releases heat into the main chamber.
• Serviceable filters and panels: Dust accumulation changes long-duration thermal behavior. Removable mesh, accessible fan trays and uncomplicated panels matter more in a workstation than decorative internal visibility.
• Storage without airflow obstruction: Drive cages are useful for local datasets and archives, but front-mounted cages can compete with GPU airflow. Modular storage is preferable to permanently blocking the intake path.
• Expansion that matches the motherboard: E-ATX or SSI-EEB support is relevant, but the case’s expansion-slot count does not guarantee usable multi-GPU spacing.

A published maximum GPU length is a boundary, not a complete compatibility result. Check the exact card’s length, width and thickness, then inspect the connector position and side-panel distance.

Multi-GPU: space is not the same as feasibility

Two 575W open-air GPUs could release roughly 1,150W of GPU heat inside one enclosure. The supplied evidence supports cases with numerous expansion slots, direct GPU fan positions and large radiators, but it does not establish that any conventional air-cooled tower can keep two such cards comfortable under continuous load.

Physical success depends on motherboard slot spacing, card thickness, cooler intake clearance and the position of other PCIe devices. A nominal eight- or nine-slot chassis can still leave the second card starved for air. In most towers, two 575W open-air cards may therefore be impractical without liquid cooling or blower-style hardware. The latter exhaust arrangement must still be evaluated for the specific cards involved.

For most local AI development, the more defensible target is one well-fed high-TDP GPU, with space around it for intake and cable routing.

Shortlist at a glance

| Case | July 2026 observed US price | GPU clearance | Cooling headline | Storage headline | Best use | |---|---:|---:|---|---|---| | Montech Air 903 Max | $75 black | 400mm long, 190mm wide | 4 included 140mm fans; dual 360mm radiators | 2 × 3.5in, up to 5 × 2.5in | Best budget airflow | | Phanteks XT Pro Ultra | $79.99 | 415mm | 4 included 140mm fans; top 360mm | Up to 2 × 3.5in and 5 × 2.5in, depending on layout | Best budget clearance | | Lian Li LANCOOL 216 | $99.99 non-RGB | 392mm | 2 × 160mm front plus 140mm rear; dual 360mm | 2 × 3.5in, up to 6 × 2.5in | Best overall balance | | Corsair FRAME 4000D RS | $109.99 RS ARGB | 430mm | Up to 10–12 fans; dual 360mm capability | 2 × 3.5in, 4 × 2.5in | Best modular mid-range case | | Corsair Obsidian 1000D | $524.99 | No numeric maximum established in supplied evidence | Up to 18 fans and four 480mm radiators | 5 × 3.5in, 6 × 2.5in | Extreme liquid-cooled projects |

Budget picks

Montech Air 903 Max — best budget airflow

The [Montech Air 903 Max](https://www.montechpc.com/en/products_detail.php?nid=355) is the default value recommendation at an observed $75 for the black model; white was listed at $79 [[4]](tomshardware.com↗ [[5]](kitguru.net↗ [[6]](overclockers.com↗ Its strongest feature is not merely the low price but the included airflow system: three 140mm ARGB front fans and one 140mm rear fan, all PWM, with support for as many as nine fans [[7]](montechpc.com↗ [[5]](kitguru.net↗ [[6]](overclockers.com↗

The chassis accepts a GPU up to 400mm long and 190mm wide, a CPU cooler up to 180mm, and a PSU up to 240mm. It supports E-ATX, ATX, Micro-ATX, Mini-ITX, SSI-CEB and SSI-EEB motherboards [[7]](montechpc.com↗ [[8]](techpowerup.com↗ [[9]](newegg.com↗ [[6]](overclockers.com↗ Radiator capacity reaches 360mm at both the front and top [[7]](montechpc.com↗ [[8]](techpowerup.com↗ Storage support is two 3.5-inch drives and as many as five 2.5-inch drives.

Its fine-mesh front is specified at 51% porosity, and the removable magnetic front filter makes routine cleaning straightforward [[7]](montechpc.com↗ [[4]](tomshardware.com↗ [[5]](kitguru.net↗ Reviews characterize its thermal performance and feature set favorably for the price [[4]](tomshardware.com↗ [[10]](pcmag.com↗ [[11]](pcmag.com↗ The gathered evidence does not, however, provide a verified exterior-dimensions figure, so buyers should obtain that measurement from the retailer before ordering for a constrained desk or rack area.

Verdict: Buy the Air 903 Max for a single large air-cooled GPU on a strict budget. It provides the most complete included fan arrangement in this price group.

Downside: The evidence does not establish its exterior dimensions, and two 3.5-inch bays may be limiting for storage-heavy workstations. Early review samples also experienced some shipping damage, although improved foam packaging was subsequently reported [[5]](kitguru.net↗

Phanteks XT Pro Ultra — best low-cost clearance

At $79.99, the [Phanteks XT Pro Ultra](https://phanteks.com/product/xt-pro-ultra-black/) is only slightly more expensive but offers a longer 415mm GPU limit. Its exterior measures 450 × 230 × 500mm, with support for E-ATX boards up to 280mm wide, ATX, Micro-ATX and Mini-ITX [[12]](phanteks.com↗ [[13]](newegg.com↗

Cooling includes four M25-140 D-RGB fans. Total capacity is up to ten 120mm fans, or six 140mm plus three 120mm fans. Radiator limits are 360mm on top, 240mm in front and 120mm at the rear [[12]](phanteks.com↗ [[13]](newegg.com↗ [[14]](gadgetsphere.blog↗ Three 120mm positions on the mid-plate can direct air toward the GPU [[12]](phanteks.com↗ [[14]](gadgetsphere.blog↗

Storage can be arranged as five 2.5-inch drives plus one 3.5-inch drive, or three 2.5-inch drives plus two 3.5-inch drives [[12]](phanteks.com↗ [[15]](phanteks.com↗ The 184mm CPU-cooler clearance and 270mm PSU clearance are also generous. Its support for ASUS BTF, MSI Project Zero and Gigabyte Project Stealth rear-connector boards may simplify the visible chamber [[12]](phanteks.com↗ [[16]](tomshardware.com↗

The value case is reinforced by the four included 140mm fans, a point highlighted in the [Tom’s Hardware review](https://www.tomshardware.com/pc-components/pc-cases/phanteks-xt-pro-ultra-case-review) [[16]](tomshardware.com↗

Verdict: Choose the XT Pro Ultra over the Montech when maximum card length, rear-connector support or direct lower GPU fans matter most.

Downside: The front lacks a removable dust filter, and reviewers noted thinner materials than those used in Phanteks’ more expensive NV and Enthoo lines [[16]](tomshardware.com↗ [[17]](reddit.com↗ Its front radiator ceiling is also only 240mm.

Mid-range picks

Lian Li LANCOOL 216 — best overall

The [Lian Li LANCOOL 216](https://lian-li.com/product/lancool-216/)—not the newer LANCOOL 217, for which the supplied evidence does not establish the required price and specifications—is my most balanced recommendation.

The non-RGB version was observed at $99.99, while RGB variants were generally $109–$115 [[18]](tomshardware.com↗ [[19]](techpowerup.com↗ [[20]](tweaktown.com↗ Dimensions are 480.9 × 235 × 491.7mm, and maximum GPU length is 392mm [[21]](lian-li.com↗ [[22]](pcpartpicker.com↗ [[19]](techpowerup.com↗

Its defining feature is the stock cooling package: two 160mm front PWM fans and one 140mm rear PWM fan. Total fan capacity reaches ten, while radiator support extends to 360mm at the front and top and 240mm at the bottom [[21]](lian-li.com↗ [[22]](pcpartpicker.com↗ [[23]](amazon.com↗ [[19]](techpowerup.com↗ A supplied PCIe fan bracket can hold a 120mm fan near the rear expansion area to assist GPU airflow [[21]](lian-li.com↗ [[24]](kitguru.net↗ [[20]](tweaktown.com↗

The modular motherboard tray has separate positions for air- and liquid-cooling layouts. In its lower position, it creates a 63mm top gap for radiator and fan installation [[21]](lian-li.com↗ [[24]](kitguru.net↗ [[25]](bhphotovideo.com↗ Storage capacity is six 2.5-inch SSDs and two 3.5-inch HDDs [[21]](lian-li.com↗ [[18]](tomshardware.com↗

Verdict: The LANCOOL 216 is the best overall single-GPU AI workstation case here. It combines large included intake fans, useful storage and flexible radiator placement without becoming a full tower.

Downside: Its 392mm GPU limit is lower than the Montech and Phanteks limits. Since some RTX 5090 partner cards reportedly extend to 420mm, exact model verification is mandatory [[1]](pcbuildhelper.com↗ [[2]](cameraegg.org↗ [[3]](wellfizz.com↗ The magnetic front dust filter is optional rather than standard [[21]](lian-li.com↗ [[24]](kitguru.net↗

Corsair FRAME 4000D RS — best modular mid-range option

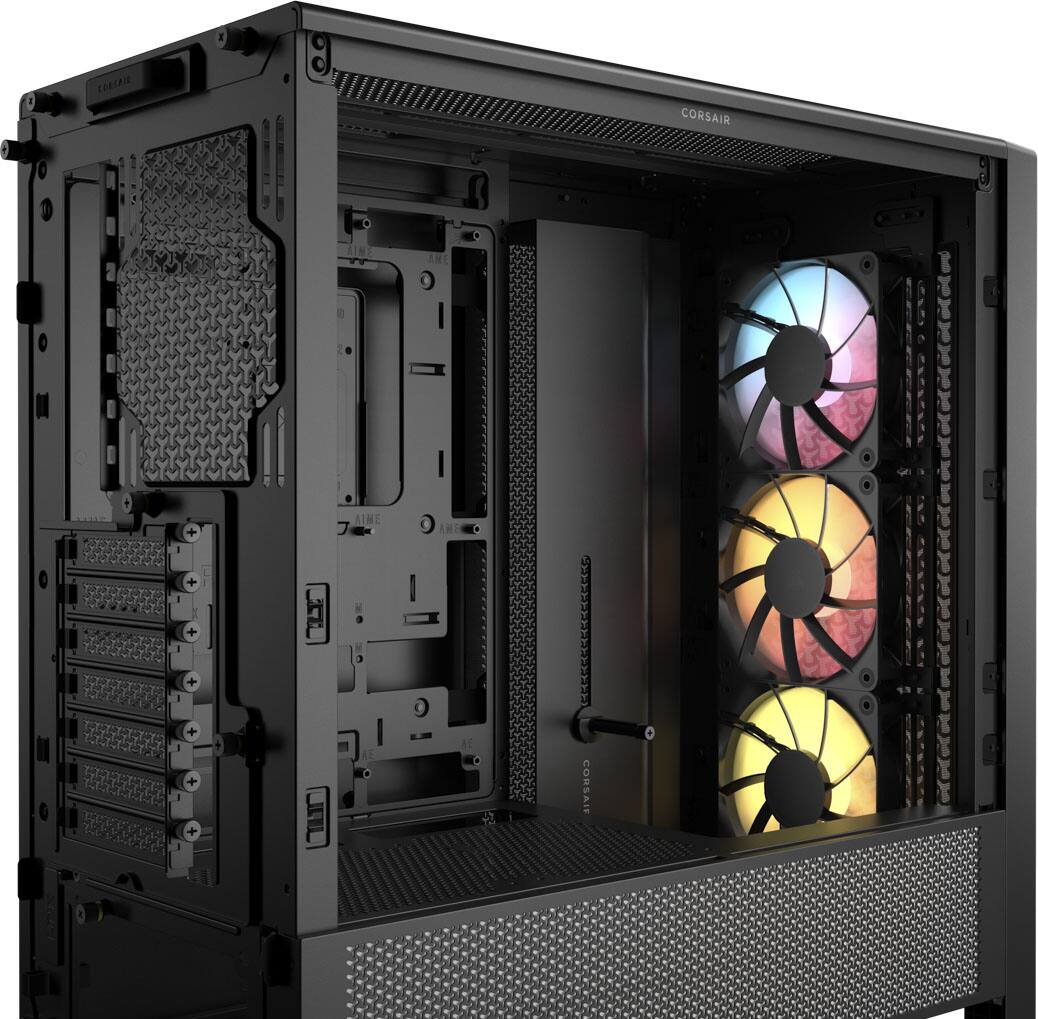

The [Corsair FRAME 4000D RS](https://www.corsair.com/us/en/explorer/diy-builder/cases/corsair-frame-4000d-series/) was observed at $109.99 for the RS ARGB model, with other variants reaching approximately $124.99 [[26]](pcmag.com↗ [[27]](pisces.bbystatic.com↗ [[28]](tweaktown.com↗ It supports GPUs up to 430mm and includes an anti-sag stabilization arm [[27]](c1.neweggimages.com↗ [[28]](tweaktown.com↗

Corsair’s adjustable InfiniRail mounting system supports precise fan positioning. Depending on configuration, the chassis accepts 10–12 fans and can accommodate two 360mm radiators across front, roof or side locations [[27]](corsair.com↗ [[28]](tweaktown.com↗ Drive support is two 3.5-inch and four 2.5-inch devices [[26]](pcmag.com↗ [[27]](corsair.com↗ It also supports rear-connector motherboards and has a removable motherboard tray and PSU shroud.

The supplied evidence does not establish an exact exterior-dimensions figure. That omission matters for a buying guide, so this recommendation is conditional on checking the current product listing before purchase.

Verdict: Select the FRAME 4000D RS when 430mm GPU clearance, modular fan positioning and rear-connector support outweigh the value of more included large fans.

Downside: Exterior dimensions were not verified in the evidence, and a more open modular structure can produce a noisier acoustic profile under load than a more enclosed design [[29]](wired.com↗ It is also less storage-dense than the LANCOOL 216.

High-end pick

Corsair Obsidian 1000D — for extreme loops, not ordinary workstations

The [Corsair Obsidian 1000D](https://www.corsair.com/us/en/p/pc-cases/cc-9011148-ww/obsidian-series-1000d-super-tower-case-cc-9011148-ww) costs $524.99 and measures an enormous 800 × 505 × 800mm, weighing 37.5kg [[30]](corsair.com↗ [[31]](corsair.com↗ This is a specialized super-tower, not a sensible upgrade simply because a system uses one expensive GPU.

It supports a full E-ATX system and a Mini-ITX system simultaneously, as well as SSI-EEB motherboards [[30]](corsair.com↗ [[32]](corsair.com↗ Cooling capacity reaches 18 fan mounts and four 480mm radiators, while storage totals five 3.5-inch HDDs and six 2.5-inch SSDs [[30]](corsair.com↗ Expansion consists of eight horizontal and two vertical slots.

The evidence describes broad compatibility with modern high-end cards, but it does not provide a defensible numeric maximum GPU length [[33]](assets.corsair.com↗ [[34]](overclock.net↗ [[35]](corsair.com↗ Buyers should therefore obtain a current dimension drawing before committing to a particular card and loop layout. Large radiator counts also require careful thickness planning; evidence from builds notes that wider or 60mm-thick radiators can create conflicts [[36]](reddit.com↗ [[37]](hardforum.com↗ [[38]](reddit.com↗ [[39]](forum.corsair.com↗

Do not buy the 1000D merely to obtain “more airflow.” Its value lies in radiator area, dual-system capacity and installation space for a deliberately engineered custom loop.

Verdict: Buy it only for an extreme liquid-cooled workstation, dual-system installation or highly specialized expansion project.

Downside: It is extraordinarily large, heavy and expensive. Its theoretical radiator capacity can introduce fit conflicts, and the supplied evidence does not establish an exact GPU-length limit.

Cable routing, storage and maintenance checklist

Before ordering any case, validate the complete assembly rather than comparing one maximum-length number:

• Add the GPU’s width and connector location to the compatibility check. Leave a natural route for the 12V-2x6 lead instead of relying on the side panel to hold it against the card.
• Map radiator and fan conflicts. A case supporting two large radiators does not guarantee that every thickness, motherboard position and storage configuration works simultaneously.
• Decide how many 3.5-inch drives are genuinely required. Remove unused cages where the case permits it, especially if they obstruct the lower front intake.
• Prefer a direct front-to-back path for an open-air GPU. Bottom or mid-plate fans are useful only when their intake is not blocked.
• Check filter removal before choosing the case’s final location. A filter that requires moving a heavy workstation will be cleaned less often.
• Treat vertical mounting cautiously. Fractal, Phanteks and other manufacturers specify optional risers for some configurations, and moving a thick card close to glass can reduce its intake space [[40]](fractal-design.com↗ [[41]](support.fractal-design.com↗ [[42]](manualslib.com↗ [[43]](bit-tech.net↗

The [Fractal Design Define 7 XL](https://www.fractal-design.com/products/cases/define/define-7-xl/black-tg-dark-tint/) deserves an honorable mention for storage-oriented systems: it measures 604 × 240 × 566mm, supports up to 18 universal drive positions plus five dedicated SSD positions, and offers GPU clearance up to 549mm, or 524mm with a front fan, in open layout [[44]](fractal-design.com↗ [[40]](fractal-design.com↗ [[45]](fractal-design.com↗ It is not a formal pick because the evidence provides no exact current US retail price.

Final recommendation

For most builders, the decision is straightforward:

• Buy the Montech Air 903 Max at $75 when budget dominates and you want four included 140mm fans.
• Buy the Phanteks XT Pro Ultra at $79.99 when 415mm clearance, rear-connector support and direct GPU fan positions are more useful.
• Buy the Lian Li LANCOOL 216 at $99.99 for the best overall balance of airflow, storage and installation flexibility.
• Buy the Corsair FRAME 4000D RS at $109.99 for a modular, long-GPU build after confirming its exterior dimensions.
• Buy the Corsair Obsidian 1000D at $524.99 only when the workstation’s custom-loop or dual-system plan specifically justifies it.

My decisive choice is the LANCOOL 216 for a conventional single-GPU AI/ML workstation. The Air 903 Max is the value winner, while the 1000D belongs to a fundamentally different class of project.

Above all, do not interpret a large case as automatic permission to install two 575W open-air cards. Slot spacing, card thickness, motherboard layout and cooling architecture determine whether multi-GPU operation is physically and thermally credible. For sustained workloads, one correctly installed GPU with clean intake, unobstructed exhaust and properly routed power cabling is the safer workstation design.

---
